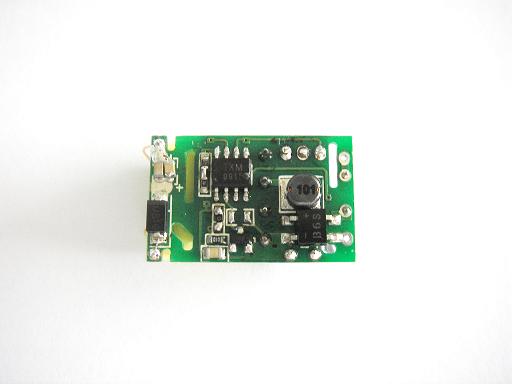

T110C550W06S03 driver module is specially designed for LED lamps of E26、E27、GU10，it is small enough to install in normal lamps（E27；E26）directly and can drive 3*3W high power (Sharp LEDs) with all kinds of color. The model is designed with rectangle profile and lower temperature rise so to ensure longer working time.The module designed with over-current projection can project the LED in the abnormal application.
Product model： T110 C550 W06 S03
T series AC=110V Iout=550MA P=6W 3PCS LED
Technical parameter
|
|
Item |
Parameter |
|
Input |
（V）Voltage range(V) |
AC 80V-130V |
|
（mA）(input current(MA) |
100mA Max |
|
（%）Efficiency(%) |
68% |
|
Input current when open circuit |
<1mA |
|
Input current when short circuit |
<1mA |
|
Power factor |
>0.65 |
|
output |
（V）Output voltage(V) |
DC=9-13V |
|
（mA）Rated current (mA) |
550mA±5% |
|
（mA）Instantaneous current |
800mA(500nS) |
|
Others |
（℃）Work Temperature |
0℃ - +85℃ |
|
（%）Humidity |
20%-95%RH |
|
（mm）Dimension（length*width） |
27mm*18mm*13mm |
|
isolated voltage |
4000V(10S) |
|
Over voltage protection |
Yes |
|
Open circuit protection |
Yes |
|
Short circuit protection |
Yes |
|
Thunder protection |
Yes |
|
switch interval |
0.05S |
|
Life |
20000Hours |
|
（g）Weight |
10g |
Product use: This module has four leadlines, two black are input lines jointing with alternating current, red/blue are output lines, red line jointing with positive of high power LED, blue line jointing with negative of high power LED. |
