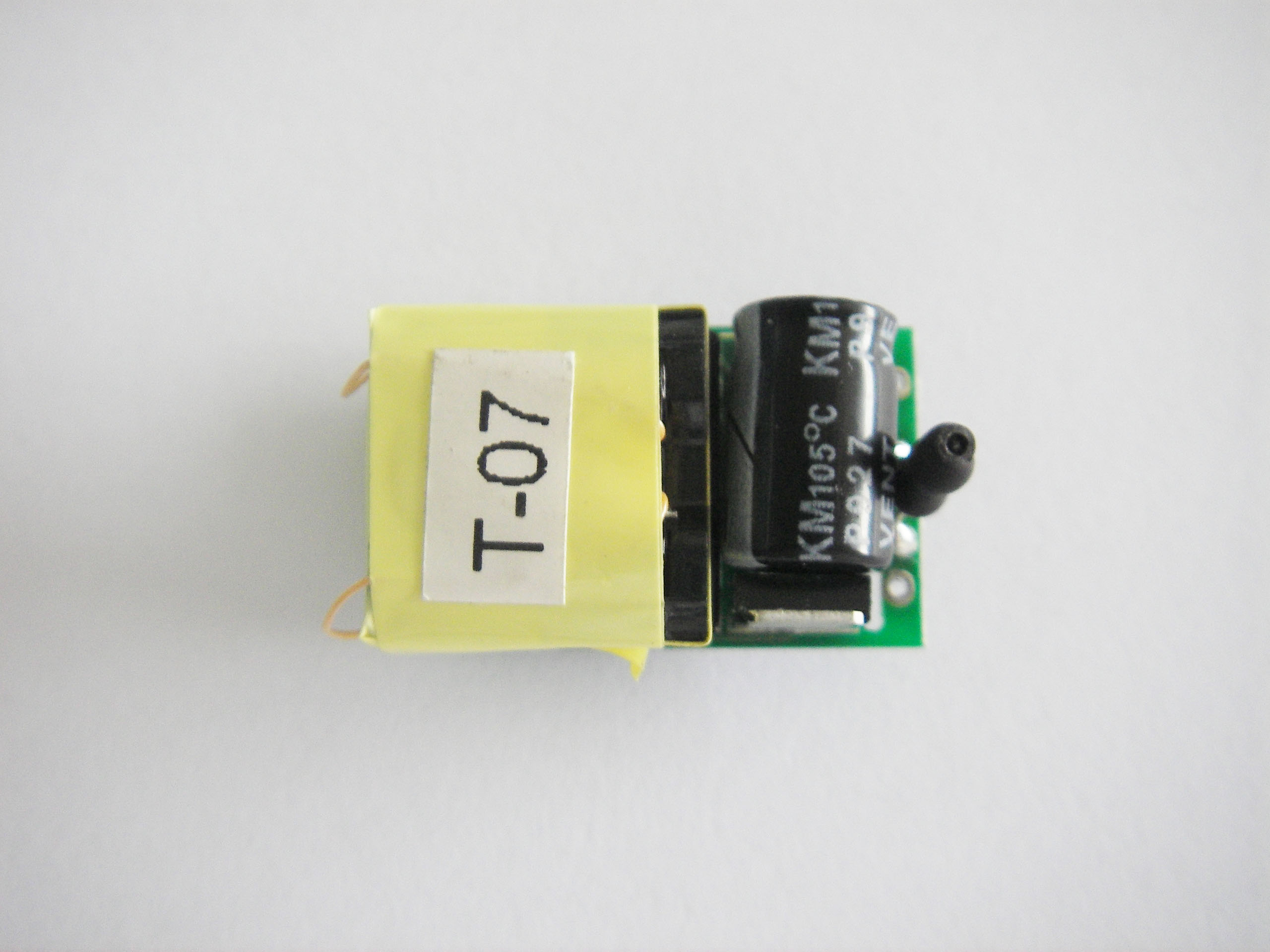

T220C330W05S05 driver module is specially designed for LED lamps of E26、E27、GU10，it is small enough to install in normal lamps（E27；E26）directly and can drive 5*1W Whigh power (Sharp LEDs) . The model is designed with rectangle profile and lower temperature rise so to ensure longer working time.The module designed with over-current projection can project the LED in the abnormal application.
Product model：T220 C330 W05 S05
T series AC=220V Iout=330MA P=5W 5PCS LED
Technical parameter
|
|
Item |
5*1W Parameter |
|
Input |
（V）Voltage range(V) |
AC 180V-265V |
|
（mA）(input current(MA) |
53mA Max |
|
（%）Efficiency(%) |
75% |
|
Input current when open circuit |
<1mA |
|
Input current when short circuit |
<1mA |
|
Power factor |
>0.6 |
|
output |
（V）Output voltage(V) |
DC=14-17V |
|
（mA）Rated current (mA) |
330mA±5% |
|
Others |
（℃）Work Temperature |
0℃ - +85℃ |
|
（%）Humidity |
20%-95%RH |
|
（mm）Dimension（length*width） |
27mm*18mm*13mm |
|
isolated voltage |
4000V(10S) |
|
Over voltage protection |
Yes |
|
Open circuit protection |
Yes |
|
Short circuit protection |
Yes |
|
Thunder protection |
Yes |
|
switch interval |
0.05S |
|
Life |
20000Hours |
|
（g）Weight |
10g |
Product use: This module has four leadlines, two black are input lines jointing with alternating current, red/blue are output lines, red line jointing with positive of high power LED, blue line jointing with negative of high power LED.
