Products	Home > Passed CE-LED Spotlight >5W High Power LED Driver

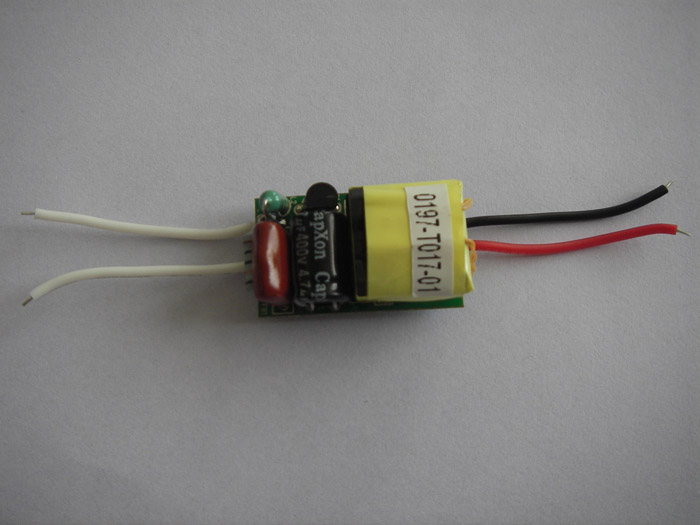

PAA220C300W05S05-E

Series: AC90-260V,300mA,5*1W

Types: E27

Description: ●Constant current output.
●Ensure the application safety of high power LED.
●Universal input voltage(90-260V)
●Isolated power supply, isolated voltage 3750V.
●Pass the tests of security and EMC
●Short circuit protection, open circuit protection, over-temperature protection;
●Size: 30mm*18mm*13mm. China and US patent owned.
●Drive in the all LED of 5* 1W
●Long life design, up to 20,000 hours of high reliability

PAA220C300W05S05-E.PDF

Product model：PAA220 C300 W5 S5

PAA series AC=90-260V Lout=300MA P=5W 5PCS LED

Technical parameter

	Item	Parameter
Input	Voltage range（V）	AC 90V-260V (50mA)
	Efficiency（%）	75%
	Power factor	>0.58
Output	Output voltage（V）	DC=17V
Output	Constant current and precision（mA）	300mA±5%
Others	Temperature（℃）	–20℃ ～+85℃
	Humidity（%）	20%-95%RH
	Isolated voltage	3750V
	Over voltage	Yes
	Over-temperature protection	Yes
	Short circuit / Empty protection	Yes
	Dimension（length*width）（mm）	30mm18mm13mm
	Life	20000Hours
