Products	Home > Passed CE-LED Spotlight >3W High Power LED Driver

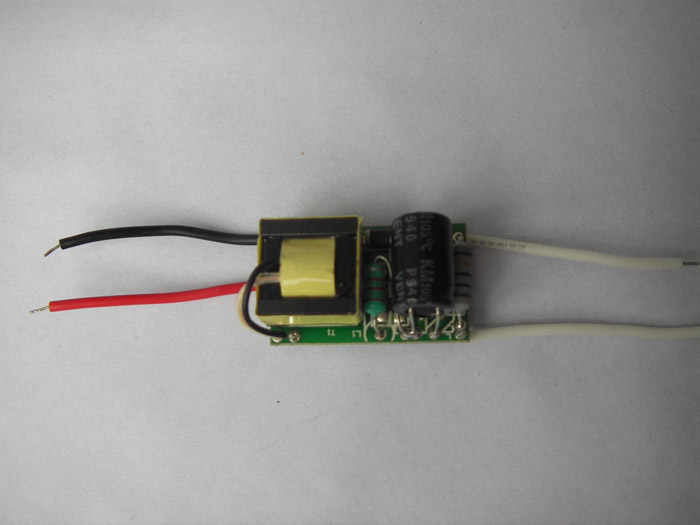

PP220C300W03S03-E

Series: AC90-260V,300mA,3*1W

Types: GU10

Description: ●Constant current output.
●Ensure the application safety of high power LED.
●Universal input voltage(90-260V)
●Isolated power supply, isolated voltage 4000V.
●Pass the tests of security and EMC
●Short circuit protection, open circuit protection, over-temperature protection;
●Size: 28m*17mm*14mm. China and US patent owned.
●Drive in the all LED of 3*1WW
●Long life design, up to 20,000 hours of high reliability

PP220C300W03S03-E.PDF

Product model：P220 C300 W3 S3

P series AC=90-260V Lout=300MA P=3W 3PCS LED

Technical parameter

	Item	Parameter
Input	Voltage range（V）	AC 90V-260V
	Efficiency（%）	75%
	Power factor	>0.55
Output	Output voltage（V）	DC=9~10.5V
Output	Constant current and precision（mA）	300±5%
Others	Temperature（℃）	-20℃ -±85℃
	Humidity（%）	20%-95%RH
	Isolated voltage	4000V
	Over voltage	YES
	Over-temperature protection	YES
	Short circuit / Empty protection	YES
	Dimension（length*width）（mm）	271814
	Life	20000Hours
