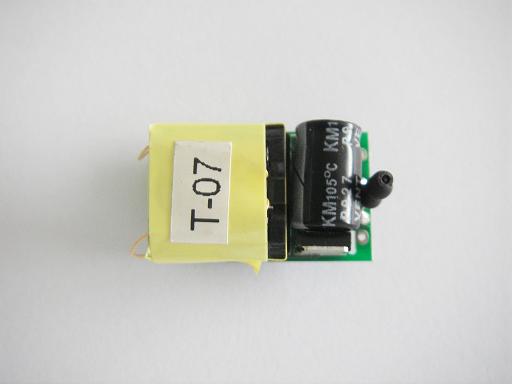

T220C300W05S05 driver module is specially designed for LED lamps of E26、E27、GU10,it is small enough to install in normal lamps(E27;E26)directly and can drive 5*1W high power (Sharp LEDs). The model is designed with rectangle profile and lower temperature rise so to ensure longer working time.The module designed with over-current projection can project the LED in the abnormal application.
Product model:T220 C300 W05 S05
T series AC=220V Iout=300MA P=5W 5PCS LED
Technical parameter
|
Item |
5*1W Parameter |
Input |
(V)Voltage range(V) |
AC 180V-265V |
(mA)(input current(MA) |
53mA Max |
(%)Efficiency(%) |
75% |
Input current when open circuit |
<1mA |
Input current when short circuit |
<1mA |
Power factor |
>0.6 |
output |
(V)Output voltage(V) |
DC=14-17V |
(mA)Rated current (mA) |
300mA±5% |
Others |
(℃)Work Temperature |
0℃ - +85℃ |
(%)Humidity |
20%-95%RH |
(mm)Dimension(length*width) |
27mm*18mm*13mm |
isolated voltage |
4000V(10S) |
Over voltage protection |
Yes |
Open circuit protection |
Yes |
Short circuit protection |
Yes |
Thunder protection |
Yes |
switch interval |
0.05S |
Life |
20000Hours |
(g)Weight |
10g |
Product use: This module has four leadlines, two black are input lines jointing with alternating current, red/blue are output lines, red line jointing with positive of high power LED, blue line jointing with negative of high power LED.
