FT220C300W05S05-E |
|
|
Series: 220V,300mA,5*1W |
Types: 5W(5*1W) ; AC=180V-265V;Iout=330mA±5% |
Description: *Type of external waterproof power supply
*The waterproof Level IP=65
*Constant current output. ensure the application safety of high power LED
*Universal input voltage:220V.
*Safety Certification passed, isolated voltage up to 3750V
*Short circuit protection,open circuit protection,Thunder protection
*Applicable for all 5*1W LED(include red and yellow)
*Samll size:30mm*20mm.
*China and US patent owned
|
|
|
FT220C300W05S05-E.PDF
|
|
FT220C300W05S05 driver module is specially designed for external type and LED lamps of E26、E27、GU10,it is small enough to install in normal lamps(E27;E26)directly and can drive five 1W high power (Sharp LEDs) with all kinds of color. The model is designed with rectangle profile and lower temperature rise so to ensure longer working time.The module designed with over-current projection can project the LED in the abnormal application.
Technical parameter
|
Item |
Parameter |
Input |
(V)Voltage range(V) |
AC 180V-265V |
(mA)(input current(MA) |
53mA Max |
(%)Efficiency(%) |
75% |
Input current when open circuit |
<1mA |
Input current when short circuit |
<1mA |
Power factor |
>0.6 |
output |
(V)Output voltage(V) |
DC=15V |
Start current |
300mA |
(mA)Rated current (mA) |
300mA±5% |
(mA)Instantaneous current |
600mA(500nS) |
Others |
(℃)Work Temperature |
0℃ - +85℃ |
(%)Humidity |
20%-95%RH |
(mm)Dimension(length*width) |
30mm*20mm*16mm |
isolated voltage |
3750V(10S) |
Over voltage/ Thunder protection |
Yes |
Open/ Short circuit protection |
Yes |
switch interval |
0.05S |
Life |
20000Hours |
(g)Weight |
18g |

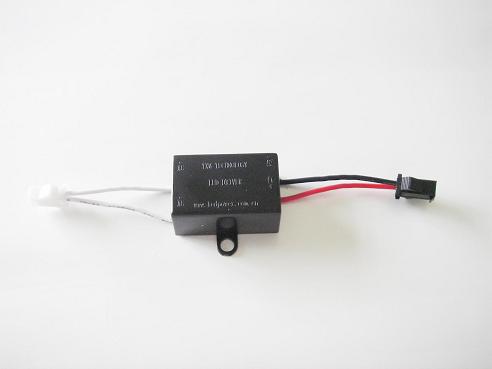

Product use: This module has two leadlines for connector. One end of the two white lines are input lines jointing with alternating current; the other side of red / black lines are the output lines, red line jointing with positive of high power LED, black line jointing with negative of high power LED. |
|
|
