FT220C550W06S03 driver module is specially designed for external type and LED lamps of E26、E27、GU10，it is small enough to install in normal lamps（E27；E26）directly and can drive three 2W high power (Sharp LEDs) with all kinds of color. The model is designed with rectangle profile and lower temperature rise so to ensure longer working time.The module designed with over-current projection can project the LED in the abnormal application.
Technical parameter
|
|
Item |
Parameter |
|
Input |
（V）Voltage range(V) |
AC 180V-265V |
|
（mA）(input current(MA) |
66mA Max |
|
（%）Efficiency(%) |
75% |
|
Input current when open circuit |
<1mA |
|
Input current when short circuit |
<1mA |
|
Power factor |
>0.63 |
|
output |
（V）Output voltage(V) |
DC=9-12V |
|
Start current |
550mA |
|
（mA）Rated current (mA) |
550mA±5% |
|
（mA）Instantaneous current |
750mA(500nS) |
|
Others |
（℃）Work Temperature |
0℃ - +85℃ |
|
（%）Humidity |
20%-95%RH |
|
（mm）Dimension（length*width） |
30mm*20mm*16mm |
|
isolated voltage |
3750V(10S) |
|
Over voltage protection |
Yes |
|
Open circuit protection |
Yes |
|
Short circuit protection |
Yes |
|
Thunder protection |
Yes |
|
switch interval |
0.05S |
|
Life |
20000Hours |
|
（g）Weight |
10g |

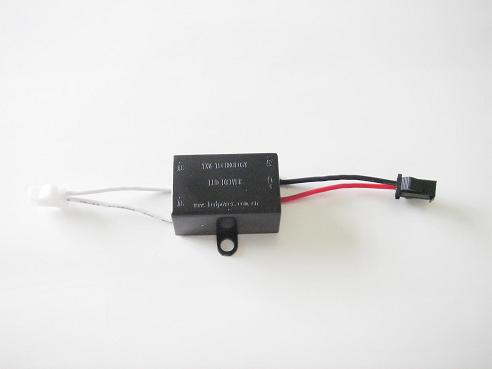

Product use: This module has two leadlines for connector. One end of the two white lines are input lines jointing with alternating current; the other side of red / black lines are the output lines, red line jointing with positive of high power LED, black line jointing with negative of high power LED.
|
